Coper Pipe with Pvc Insulation
CATEGORY: GAS PIPES

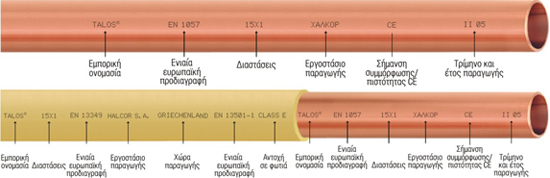

SPECIFICATIONS
EN 1057, EN 13349, EN 13501-1.
QUALITY MARKS
AFNOR.
Copper tube: RAL, DVGW, AENOR.
APPLICATIONS
INTERIOR NATURAL, GAS NETWORKS
MATERIAL
Copper phosphorus deoxidised (DHP-Cu) with min. copper content 99.9% and Ρ=0.015% - 0.040%.
Temper
EN 1057
Classification
Minimum Tensile
strength
Ν/mm2
Minimum elongation Α%
MECHANICAL PROPERTIES
Soft
R-220
220
40
...
SPECIFICATIONS
EN 1057, EN 13349, EN 13501-1.
QUALITY MARKS
AFNOR.
Copper tube: RAL, DVGW, AENOR.
APPLICATIONS
INTERIOR NATURAL, GAS NETWORKS
MATERIAL
Copper phosphorus deoxidised (DHP-Cu) with min. copper content 99.9% and Ρ=0.015% - 0.040%.
| Temper | EN 1057
Classification |
Minimum Tensile
strength Ν/mm2 |
Minimum elongation Α% | |
|---|---|---|---|---|
| MECHANICAL PROPERTIES | ||||
| Soft | R-220 | 220 | 40 | |
| Half hard | R-250 | 250 | 20 | |
| Hard | R-290 | 290 | 3 | |
| Copper tube ext. diam. x thickness d x s (mm) | Overall ext. diameter D (mm) | Tube full volume (l/m) | Nominal copper weight (kg/m) | Thermal capacity (Kcal/h) | Min. bending radius manually (mm) | Min. bending radius with bending tool (mm) | Packing in coils (m) long |
|---|---|---|---|---|---|---|---|
| COATED IN COILS | |||||||
| 15 x 1,00
15 x 1,20 18 x 1,00 18 x 1,20 22 x 1,00 |
19
19 22 22 26 |
0,133
0,125 0,201 0,191 0,314 |
0,391
0,463 0,475 0,564 0,587 |
—
— — — — |
120
120 145 145 175 |
—
— — — — |
25 or 50
25 25 or 50 25 25 |
| FUSION JOINING: MATERIALS USED FOR COPPER TUBES AND FITTINGS | |||||
|---|---|---|---|---|---|
| Filler Alloy code (acc. to EN 1044) | AG 106 | AG 203 | AG 104 | CP 105 | CP 203 |
| Filler Alloy code (acc. to DIN 8513) | L-Ag34Sn | L-Ag44 | L-Ag45Sn | L-Ag2P | L-CuP6 |
| Melting Range [0C] | 630 - 730 | 675 - 735 | 640 - 680 | 645 - 825 | 710 - 890 |
| Working Temperature [0C] | 710 | 730 | 670 | 740 | 760 |
| Flux (acc. to EN 1045) | FH 10 | FH 10 | FH 10 | without(*) | without(*) |
| Flux (acc. to DIN 8511-1) | F-SH 1 | F-SH 1 | F-SH 1 | without(*) | without(*) |
(*) If the fittings are made of alloy and not pure copper, then a 10 FH flux is required.
