Isopex
CATEGORY: PEX/AL/PEX

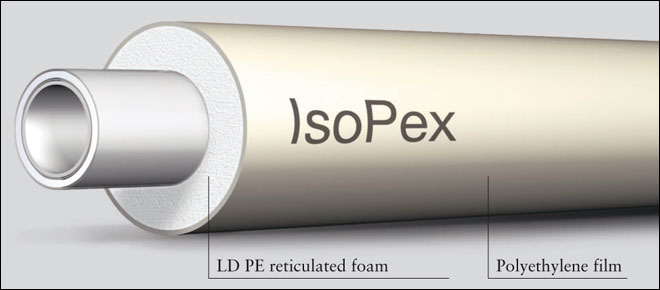

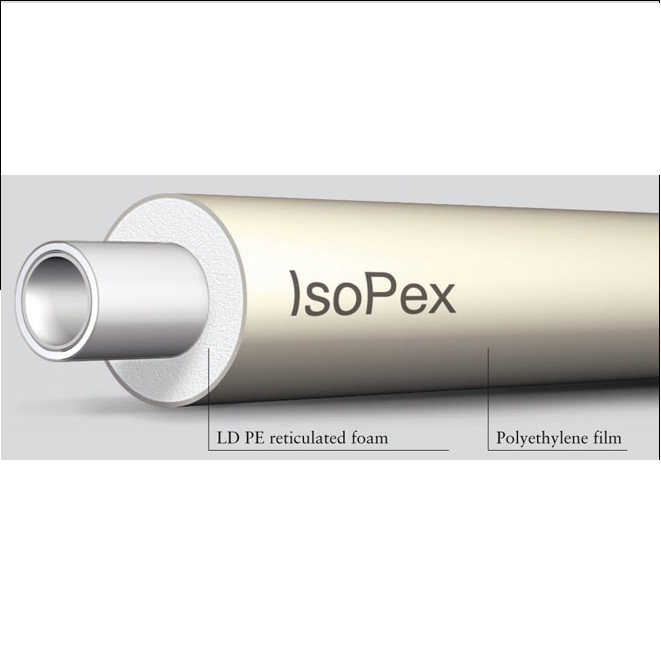

The coated EuroPex pipe becomes IsoPex.
The insulating material used to coat IsoPex multilayer pipes is reticulated polyethylene foam (PE-X), that very same insulation that has always distinguished and characterised all Zetaesse production.
Reticulated polyethylene characteristics provide IsoPex pipes with many and undeniable advantages in terms of:
Mechanical resistance
Insulation material more compact and resistant
High temperature resistance
Since PE-X has a high heat li...
The coated EuroPex pipe becomes IsoPex.
The insulating material used to coat IsoPex multilayer pipes is reticulated polyethylene foam (PE-X), that very same insulation that has always distinguished and characterised all Zetaesse production.
| Reticulated polyethylene characteristics provide IsoPex pipes with many and undeniable advantages in terms of: | ||
|
Mechanical resistance Insulation material more compact and resistant |
High temperature resistance Since PE-X has a high heat limit, it lets IsoPex pipes work in excellent conditions both in heating and cooling systems without any problems due to heat excursions and temperature changes |
Long-life The external LDPE film provides to the insulation greater strength and mechanical protection, which keeps its properties constant in time as a result. |
| IsoPex pipe insulation thickness meets law 10/91 standards. Material is non-toxic, odourless and free of chlorofluorocarbons (CFC) harmful to the environment, in accordance with EC regulation n. 2037 dated 29.06.2000. |
||
| External diameter x wall | mm | 14x2 | 16x2 | 20x2 | 26x3 | 32x3 |
| Insulation thickness | mm | 6 | 6 | 6/10 | 10 | 10 |
| Heat conductivity | λ | 0,0369 | 0,0369 | 0,0369 | 0,0369 | 0,0369 |
| Resistance to steam diffusion | μ | 5297 | 5297 | 5297 | 5297 | 5297 |
| Coil length | m | 100 | 100 | 50 | 50 | 25 |
| Self-extinguishing | CL1 | CL1 | CL1 | CL1 | CL1 |
