Platella Compact Panel

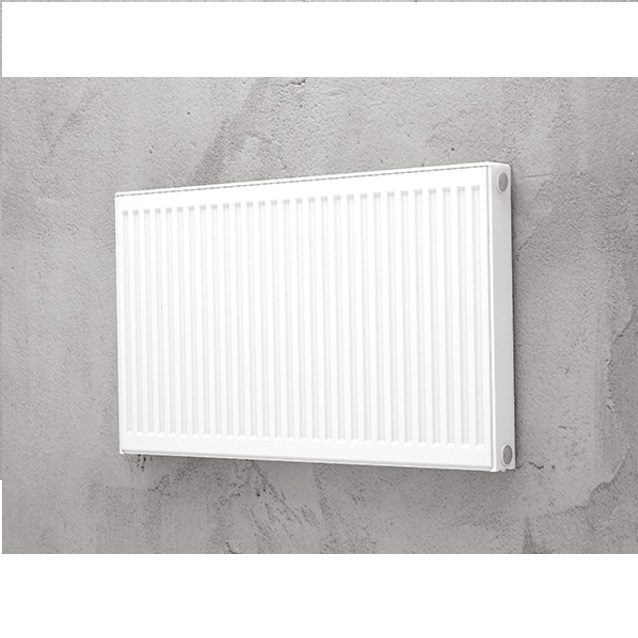

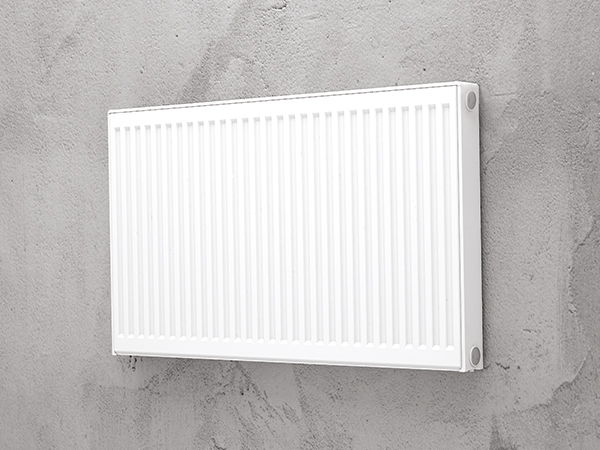

The Platella Compact plate radiator is finished with a top grid, side flanks and rear welded supports on all models.

Like all the radiators of the Platella range, it is characterised by the ability to take advantage of hot sources at medium-low temperatures.

Built using high-quality materials and techniques, this plate radiator guarantees high thermal performance and high reliability, while its compact and essential lines are a timeless and versatile style solution to overcome the barriers of time.

Technical characteristics

• working pressure 10 bar
• test pressure 13 bar
• maximum operating temperature 110 °C Included in the packing
• 4 x 1/2” connection, internal thread
• 1 blind cap 1/2” in the package; to be mounted
• 1 air vent 1/2” in the package; to be mounted.

Brackets and supports

• 2 or 3 GB brackets (depending on the number of welded supports) are provided for the types 11-21-22-33.
• 4 welded supports up to and including a length of 1600 mm; over this, 6 supports

Connection
Compact panel can be connected to a two-pipe installation with high/high same side, high/
low opposite side or low/low opposite side connections. The two-pipe connection requires a valve and lockshield (not provided).Models 21-22-33 can also be connected to aone-pipe installation with a single connection,
using the flow deviator. Models 10 and 11 can be connected to a one-pipe installation, but only with
valve with external injection pipe. A one-pipe valve is not provided.

Safety

• Compact radiators cannot be inverted around any of the three axes.
• the sides of radiators are fastened with screws, safer than the interlocking system adopted on other panel radiators and complying with the strict German BAGUV safety standards.

Optional
Brakets and optional accessories are available on dedicated pages.
