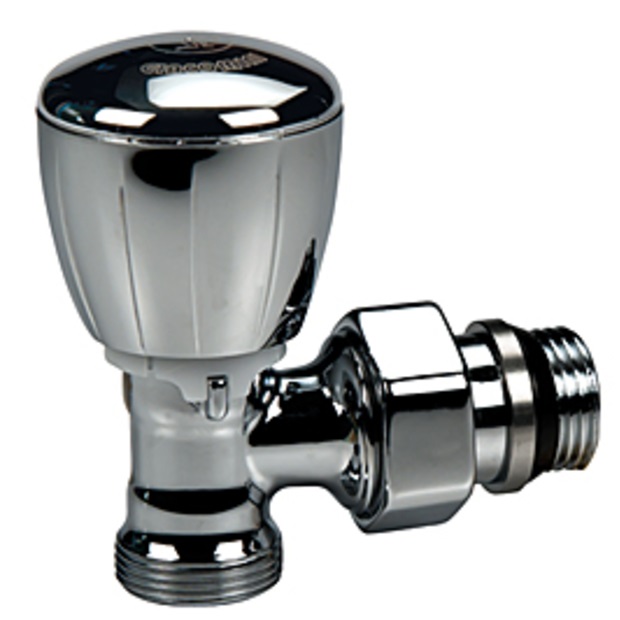

T431C Micrometric angled valve for toweldryer, with thermostatic option

Description
The T431C and T432C micrometric valves with thermostatic option are designed with a particular focus on the aesthetics of the product, with rounded forms and brilliant chrome plating on the components. Their principal use is in heating systems for toweldryers and heated towel rails, or wherever a particular look is desired. The T431C and T432C micrometric valves with thermostatic option can be coordinated with the T29C and T31C brilliant chrome lockshield valves, which intercept and balance the circuits, leaving the manual valve with the sole task of intercepting the flow when the user does not wish to heat the toweldryer

Adaptor connection, to complete with T178C or T179M.

 Technical data
• Temperature range: 5÷110 °C
• Max. working pressure: 16 bar (10 bar with thermostatic head)
• Maximum differential pressure: 1,4 bar Materials
• Body and components: brass UNI EN 12165 CW617N, with brilliant chrome plating
• Integrated command stem: stainless steel
• Seal on command stem with O-ring: EPDM
• Handwheel: Chrome-plated ABS
• Self-sealing tail piece: EPDM
