Concealed

CATEGORY: LIGHT COMMERCIAL A/C

High levels of comfort and efficiency for your business Super slim design for easy installation Capability of a vent connection Built-in drain pump The solution for hard conditions These units are equipped with a built-in drain pump, fresh air intake and the capability of air inlet from the top or the backside, making even the hardest installations possible. The wide capacity range from 12.000 up to 54.000 Btu/h offers the ideal solution for business environments, regardless of...

High levels of comfort and efficiency for your business

  • Super slim design for easy installation
  • Capability of a vent connection
  • Built-in drain pump

The solution for hard conditions

These units are equipped with a built-in drain pump, fresh air intake and the capability of air inlet from the top or the backside, making even the hardest installations possible. The wide capacity range from 12.000 up to 54.000 Btu/h offers the ideal solution for business environments, regardless of their size and type.

Α+++ Energy class

Higher and greater efficiency, with great energy savings.

Golden Fin

The ultimate protection of the air conditioner, especially at areas with high humidity levels and increased corrosive possibility, such as islands and coastal areas, can now be achieved. The golden, anticorrosive coating of the outdoor unit’s refrigerant, protects against salty air, rain and other corrosive elements, ensuring the effective performance of the air conditioner and the extension of its lifeline. The golden coating of the indoor unit refrigerant, thanks to its antibacterial action, allows you to enjoy a perfectly clean and healthy atmosphere!

Wi-Fi Ready

Set the air conditioner easily from wherever you are through your Smartphone or your Tablet. Free download the Invmate II application via Google Play & App Store and achieve optimal temperature conditions with great energy savings.

*The Wi-Fi Ready Duct air conditioners, require the purchase of a Smart Wi-Fi Port for their operation, which you can easily obtain from air conditioning and electrical appliances stores.

R32 ECO Refrigerant

The R32 ECO Refrigerant with 68% lower global warming potential, is here to significantly enhance your air conditioner performance and to drastically contribute to global warming protection. It does not adversely affect the ozone layer, contributes in reducing global warming effect by entrapping smaller amounts of heat (GWP = 675) and can be easily reused and recycled.

Chest & Upright Installation

The innovative design of the new Duct series, enable you to install your air conditioner whenever you want, always based on your place's requirements. Select between the chest and the upright placement and enjoy the ideal situation easily and fast.

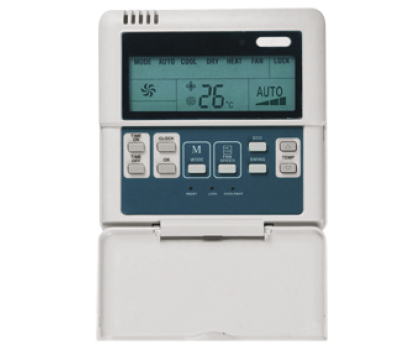

New “High Intelligence” Controller

Take advantage of the Weekly Planner and adjust according to your needs, the air conditioner’s operating period, ensuring maximum energy and money savings. The new advanced wired controller, shows up the error codes and additionally enables you to activate the room temperature sensor via the wired controller instead of the air conditioner.

Static Pressure Settings

With the advanced technology of the new air Duct units, you can set the available static pressure depending on your plant’s duct network, from 0Pa to 120Pa.

Built-in Drain pump

The built-in drain pump is the absolute solution for the most difficult installations. Due to the fact that it can lift the condensing water up to 750mm you are able to select the placement of your air conditioning.

Front desk control On/Off(Optional)

With a smart control board, air conditioners can be turned on/off via long distance control signals.

Fresh air intake

Capability to connect a vent in order to enable fresh air load in the room.



MODEL

V4MDI-12B/U4MRS-12B

V5MDI32-18WiFiR/U5MRS32-18

V5MDI32-24WiFiR/U5MRS32-24

V5MDI32-36WiFiR/U5MRS32-36

V5MDI32-50WiFiR/U5MRT32-50

V5MDI32-60WiFiR/U5MRT32-60

Cooling Capacity (Btu/h)

12.000(1.800-12.800)

18.000 (4.200-21.000)

24.000 (7.500-28.300)

36.000 (9.000-41.000)

48.000 (14.545-51.845)

52.000 (20.000-59.000)

Cooling Capacity (kWatt)

3.52 (0.53-3.75)

5.28 (1.23-6.15)

7.03 (2.20-8.21)

10.55 (2.64-12.01)

14.0 (4.26-15.20)

15.4 (5.86-17.29)

Heating Capacity (Btu/h)

13.000(3.400-13.600)

19.000 (6.000-24.000)

26.000 (8.300-29.500)

38.000 (10.000-45.000)

55.000 (12.621-61.500)

62.000 (16.000-70.000)

Heating Capacity (kWatt)

3.81 (1.00-3.99)

5.57 (1.76-7.03)

7.62 (2.43-8.65)

11.14 (2.93-13.19)

16.1 (3.7-18.03)

18.2 (4.69-20.52)

Seasonal Efficiency(In accordance
to EN14825)

Cooling

Pdesign (kW)

3.5

5.3

7.0

10.5

14

15.4

Energy Class

Α+

Α++

Α++

Α++

A++

A++

SEER

5.6

6.1

6.1

6.1

6.1

6.1

Heating (Middle Zone)

Pdesign (kW)

2.6

4.6

5.1

8.4

12

12.5

Energy Class

Α+

Α+

Α+

Α+

A+

A+

SCOP

4.0

4.0

4.0

4.0

4.0

4.0

Heating (Warm Zone)

Pdesign (kW)

3.4

5.1

6.1

10.5

12.5

13.1

Energy Class

Α++

A+++

A+++

A+++

A+++

A+++

SCOP

4.9

5.1

5.1

5.1

5.1

5.1

Voltage / Frequency / Phase (V/Hz/Ph)

220-240/50/1

220-240/50/1

220-240/50/1

220-240/50/1

380-415/50/3

380-415/50/3

Current Input (A)

Cooling/Heating

1.3-10/1.48-10

1.2-9.3/1.4-9.5

2.1-12.4/2.2-12.5

2.9-19.6/2.8-19.8

1.8-9.4/1.65-10.22

2-11/1.6-9.9)

Power Input (W)

Cooling/Heating

155-2.300/302-2.300

280-2.150/330-2.180)

480-2.850/500-2.880

660-4.500/650-4.550

1.170-5.699/1.048-6.124

1.274-6.651/1.042-6.034)

Air Flow Volume (m3/h)(High/Medium/Low)

600/480/300

1.006/853/684

1.248/1.054/839

1.400/1.150/750

2.400/2.040/1.680

2.600/2.210/1.820

Outdoor Static Pressure (Pa)

0-60

0-100

0-160

0-160

0-160

0-160

Noise Level (dB(A))

Indoor unit  (Low/Medium/High)

27.5/34.5/40

40/42/44

40/42/44

40/43/47

48/49.5/50.5

50.5/52/54

Outdoor unit

56

57

62

65

66

66

Sound Power Level (dB(A))

Indoor/Outdoor unit

59/62

60/65

62/66

62/68

68/72

71/74

Power Supply Wire Outdoor (No x mm2) / Fuses (A)

3x2.5/1x16

3x2.5/1x16

3x2.5/1x16

3x4.0/1x25

5x2.5 / 3x20

5x2.5 / 3x20

Signal Wires (No x mm2
)

4x2.5

3x1.5 & (2x1.0 Shield)

3x1.5 & (2x1.0 Shield)

3x1.5 & (2x1.0 Shield)

3x1.5 & (2x1.0 Shield)

3x1.5 & (2x1.0 Shield)

Dimensions WxDxH (mm)

Indoor unit

700x450x200

880x674x210

1.100x774x249

1.360x774x249

1.200x874x300

1.200x874x300

Outdoor unit

800x333x554

800x333x554

845x363x702

946x410x810

952x415x1.333

952x415x1.333

Net Weight (kg)

Indoor / Outdoor

18/28.5

25.6/35.6

31.5/66.8

40.5/66.8

47.6/106.7

47.6/111.3

Liquid line | Gas line

mm(inch)

1/4” | 3/8”

1/4"/1/2"

3/8"/5/8"

3/8"/5/8"

3/8"/5/8"

3/8"/5/8"

Refrigerant

kg

R410A/1.050g

R32/1.350

R32/1.500

R32/2.400

R32/2.800

R32/2.9500

Outdoor Operation Temperature Range (oC)

Cooling/Heating

-15~50/-15~24

-15~50/-15~24

-15~50/-15~24

-15~50 /-15~24

-15~50 / -15~24

-15~50 / -15~24
